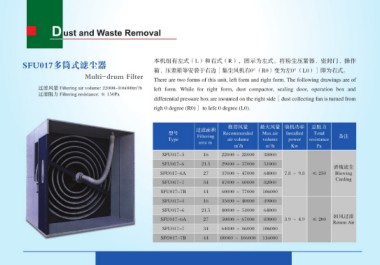

SFU017多筒式滤尘器 本机组有左式（L）和右式（R），图示为左式。将粉尘压紧器、密封门、操作
箱、压差箱等安装于右边［集尘风机右0°（R0）变为左0°（L0）］即为右式。
Multi-drum Filter There are two forms of this unit, left form and right form. The following drawings are of
left form. While for right form, dust compactor, sealing door, operation box and
过滤风量 Filtering air volume: 22000~106000m3/h differential pressure box are mounted on the right side［dust collecting fan is turned from
过滤阻力 Filtering resistance: ≤ 150Pa righ 0 degree (R0)］ to lefe 0 degree (L0).

型号 过滤面积 推荐风量 最大风量 装机功率 总阻力 备注
Type Filtering Recommended Max.air Installed Total
area m2 volume power resistance
SFU017-5 air volume
SFU017-6 m3/h m3/h Kw Pa
SFU017-6A
SFU017-7 16 22000 ～ 28000 38000
SFU017-7B
SFU017-5 21.5 29000 ～ 37000 51000 清梳滤尘
SFU017-6
SFU017-6A 27 37000 ～ 47000 64000 7.8 ～ 9.8 ≤ 250 Blowing
SFU017-7
SFO017-7B 34 47000 ～ 60000 82000 Carding

44 60000 ～ 77000 106000

16 35000 ～ 40000 49000

21.5 40000 ～ 54000 64000

27 50000 ～ 67000 83000 3.9 ～ 4.9 ≤ 200 回风过滤
Return Air

34 64000 ～ 86000 106000

44 80000 ～ 106000 116000
